Cost Effective

Windeck® comes as a finished product, which means no additional toppings or finishes required. It’s installed by bricklayers (no specialist installers), and does not require heavy machinery. This all adds up to massive cost savings.

  Lightweight

Windeck® is the lightest precast concrete flooring system on the market. A modular flooring system assembled on site, which means it may be installed by hand, and without unnecessary heavy lifting equipment. This all reduces weight and cost of the building.

  Easily Installed

Windeck® comes to site at full 50mPa concrete strength. No propping needed. No 'in-situ' concrete and therefore no complex and costly reinforcing is required. It is assembled on site with manual labour, as a quick modular standard building method.

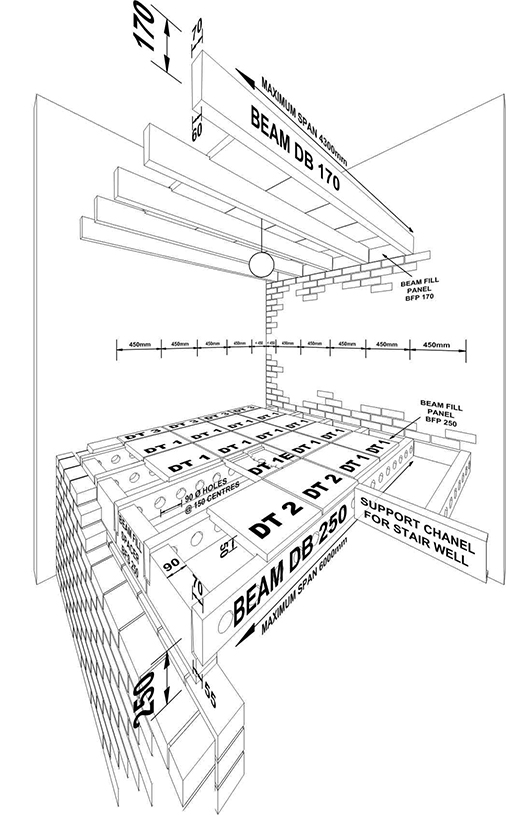

Windeck® is a prestressed concrete, manually-assembled, suspended floor system comprising prestressed concrete beams and reinforced concrete tiles.

Dimensionally, Windeck is based on a 450 mm module. The Windeck® assembly results in an off-the-shutter tile top surface, off-the-shutter surfaces to the beams and a self finished underside to the tiles.

Other finishes may be applied if desired. Windeck® accepts electrical cabling between tiles before grouting and tooling, and is fire resistant (SABS Tested 30mins Rating). Two beam depths and four tile types together with two types of end panels provide the components to meet most requirements.

Full structural information and component options are contained in our system catalogue.

Download Files

Download Catalogue + CAD files + Autodesk® Revit® Families for this system. All neatly packaged in a handy "zip" folder that contains everything you need.
