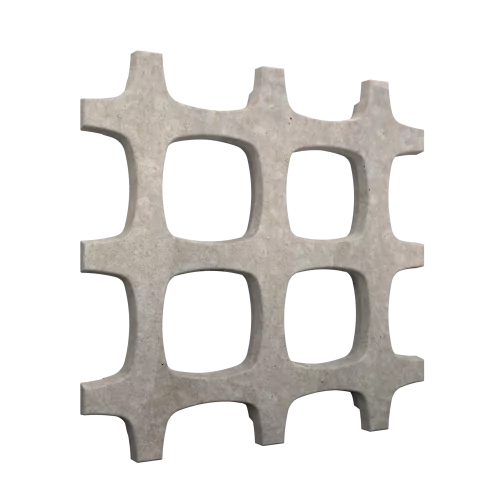

Winblok®  Squircle Screen

(wb66-sqs)

This screen, although an orthogonal grid in origin, presents as an organic ‘bone like’ softened grid, neither square nor circle, a Squircle. A softer and quieter rhythmic façade is generated in a continuous wall of these screens.

Winblok®  Nest Screen

(wb66-ns)

Taking a cue from the ‘Birds Nest’ Beijing Olympic building, we have designed an asymmetric fractal screen that may be fitted in a single or random orientation, generating subtle variations in the progression across the façade.

Winblok®  Louvre Screen

(wb66-ls)

The louvre screen draws on the more conventional shutter aesthetic if fitted in the horizontal format. However, it may also be fitted vertically (say on east or west façades) or used to orientate the view from within in a particular direction. This screen is better suited to act as a rain screen in its horizontal format, as it has a continuous drip along the top edge.

Winblok®  Solid Screen - Plain

(wb66-ssp)

The Solid Screen - Plain, presents an opportunity to ‘blank out’ the façade where necessary, resulting in a standard wall panel. With its external facing, smooth off-shutter concrete finish, it creates a familiar modern concrete look.

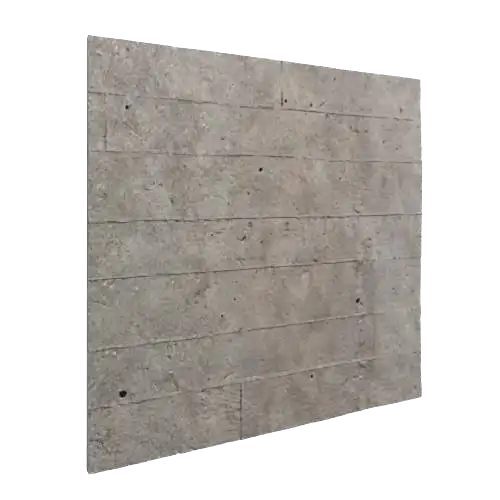

Winblok®  Solid Screen - Timber

(wb66-sst)

The Solid Screen - Timber is inspired by 'timber off-shutter concrete architecture'. Timber engrained solid concrete screens, allow for blanking out the façade, with a randomly designed ‘timber off-shutter’ look. Place them vertically, horizontally, or alternatively.

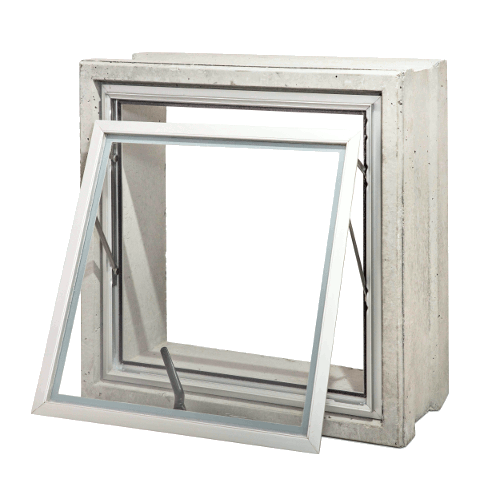

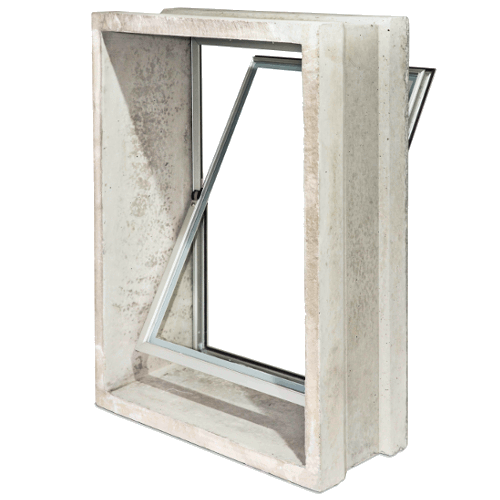

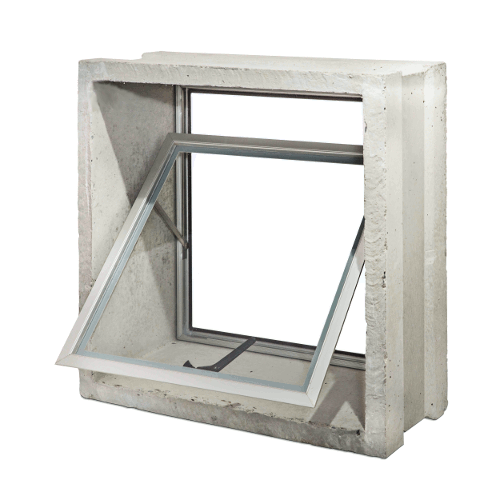

Winvent®  Top Hung

The aluminium Top Hung projecting out Winvent® is supplied factory glazed (silicone flush glazing), 4mm Float Glass as standard. Manufactured from aluminium extruded sections, which are epoxy powder coated finished. The handle is Injection Moulded, Glass Fiber Reinforced PA 6 Nylon in black. Weather seals are wool pile. The sliding friction stays are in 304 stainless steel.

All glass types may be specified for Winvent. Architect to specify appropriate glass type required per project. Fly screens and burglar bars may be factory fitted as additional accessories.

Winvent®  Dual Top Hung

The aluminium Dual Tophung projecting out Winvent® is supplied factory glazed (silicone flush glazing), 4mm Float Glass as standard. Manufactured from aluminium extruded sections, which are epoxy powder coated finished. The handle is Injection Moulded, Glass Fiber Reinforced PA 6 Nylon in black. Weather seals are wool pile. The sliding friction stays are in 304 stainless steel.

All glass types may be specified for Winvent. Architect to specify appropriate glass type required per project. Fly screens and burglar bars may be factory fitted as additional accessories.

Winvent®  Fixed Frame

The aluminium fixed frame Winvent® is designed to match the opening Winvent® Top Hung. Manufactured from superior quality aluminium extruded sections. It is supplied factory glazed (silicone flush glazing), 4mm Float Glass as standard.

All glass types may be specified for Winvent. Architect to specify appropriate glass type required per project. Burglar bars may be factory fitted as additional accessories.

Winvent®  Fixed Direct Glass

We have developed one of the most cost-effective ways to allow light into the building. A pane of glass (no aluminium) is directly installed into the glazing rebate of the Winblok® frame using our Neutral-Cure Silicone sealant.

As a standard we supply 4mm Toughened Safety Glass (TSG) for the Fixed Direct application, as we have found that the TSG types of glass are most resistant to cracking when applied directly into the Winblok® Concrete Frame. Cracking of glass in the Fixed Direct Application is caused by expansion and contraction of different materials, as the glass is not 'protected' by an aluminium housing. Float and Laminated Glass types do not perform well when used in the Fixed Direct application. The Architect is to specify the glass type required.

Winvent®  Central Pivot

The aluminium central pivot Winvent®, designed for high level pole action with a pull ring spring catch, is supplied factory glazed (silicone flush glazing), as a standard we supply 4mm Toughened Safety Glass (TSG) for this application. It is manufactured from aluminium extruded sections which has an epoxy powder coated finish. Weather seals are wool pile and the centre pivot hinge is a nylon friction bearing.

Due to the nature of this window type, we recommend Toughened Safety Glass (TSG) for this application. Burglar bars may be factory fitted as additional accessories.

Winvent®  Bottom Pivot

The Bottom Pivot Winvent® inward opening is designed to be used where projecting out, or a Central-Pivot Winvent®, may be inappropriate. This Winvent® is supplied with a pull ring spring catch and comes factory glazed (silicone flush glazing), as a standard we supply 4mm Toughened Safety Glass (TSG) for this application. It is manufactured from aluminium extruded sections which are epoxy powder coat finished. Weather seals are wool pile. The Bottom Pivot is set 100mm from the bottom and has a ‘stop’ attached to limit the opening width.

Due to the nature of this window type, we recommend Toughened Safety Glass (TSG) for this application. Burglar bars may be factory fitted as additional accessories.

Winvent®  Flyscreen*

The Flyscreen for the Winvent® is manufactured from an aluminium extrusion frame into which a fibre mesh is secured with a rubber gasket. It is top hung on the frame with glass-reinforced nylon hinges and opens inwards secured by a catch.

*The Flyscreen is only available as a factory fitted item.

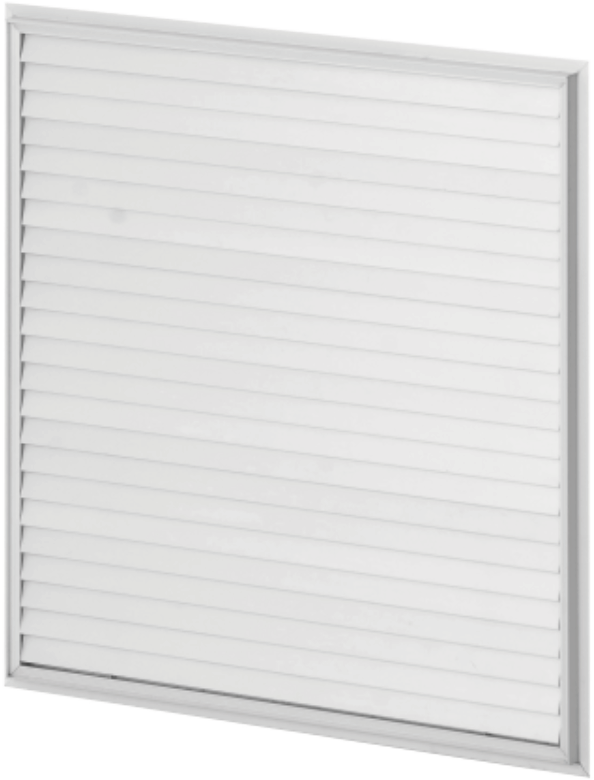

Winvent®  Fixed Louvre

The Winvent® aluminium fixed louvre provides permanent fixed ventilation for squash courts, switch rooms, ventilation ducting and other similar applications. They will not totally exclude entry of wind driven rain. Aluminium Fixed Louvres are manufactured from extruded aluminum louvre blades carried on tubular mullions and mounted in an aluminium Winvent® frame.

Fly screens and burglar bars may be factory fitted as additional accessories.

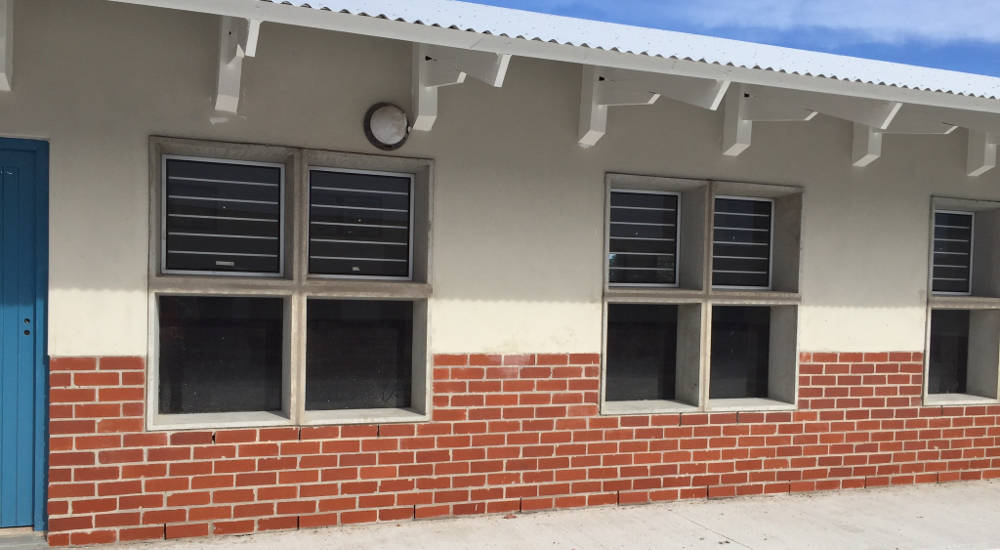

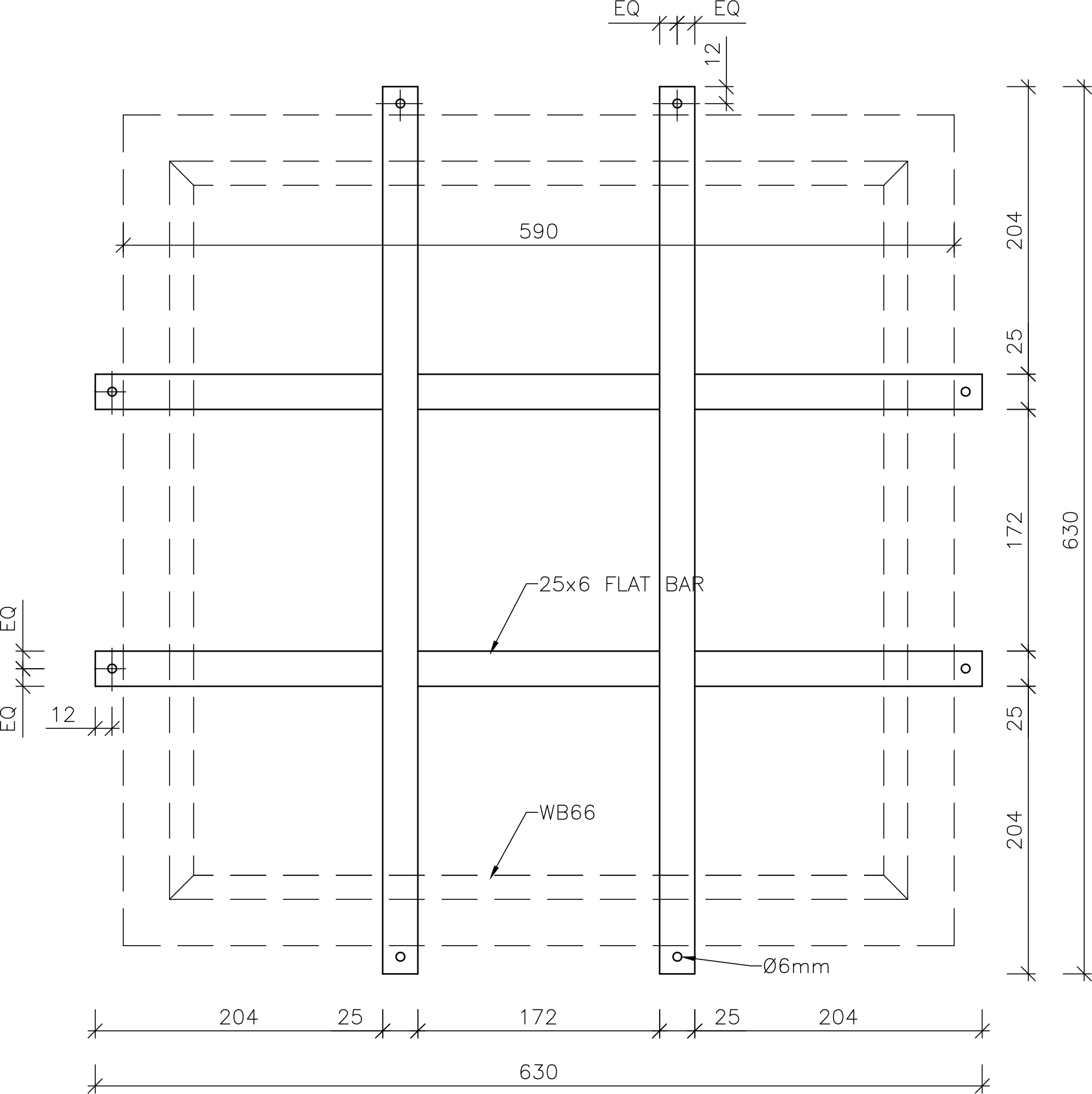

Winvent®  Burglar Bars

Winvent® Burglar Bars are manufactured from 12 x 10mm solid aluminium bars, and factory fitted with countersunk pop rivets as an added accessory.
