Sun Control using Winslot® 5 Brick Course Application during Summer Solstice at various latittudes

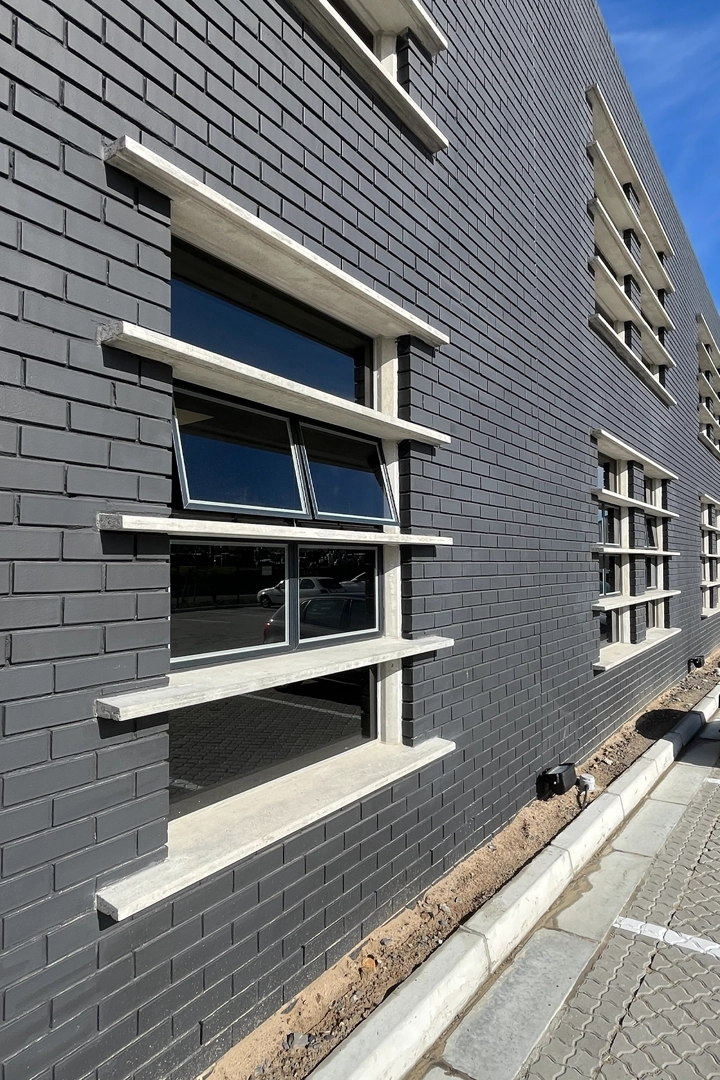

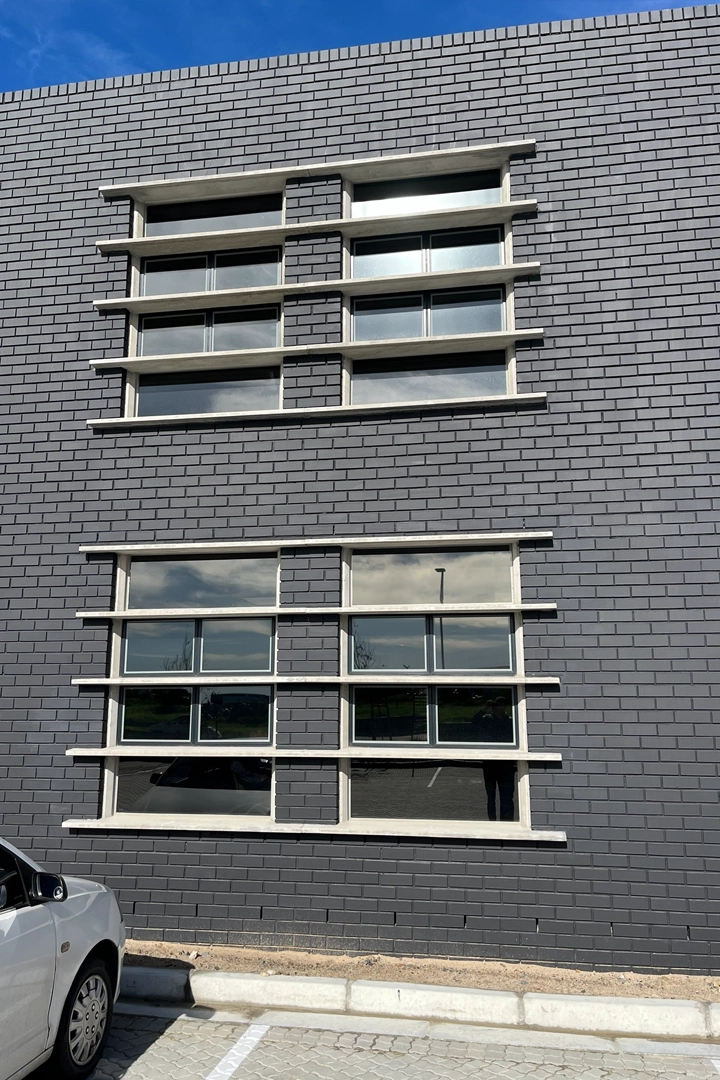

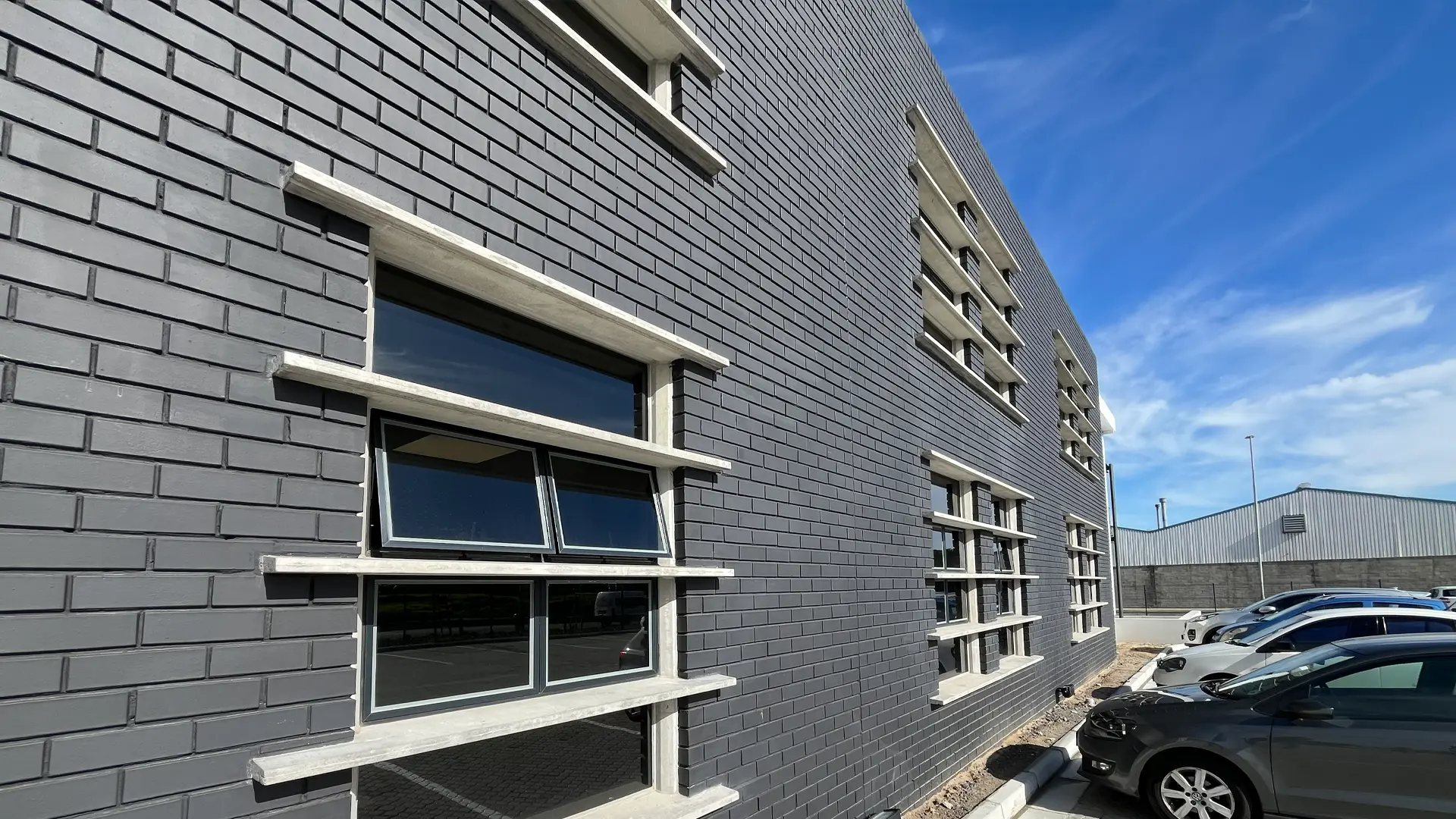

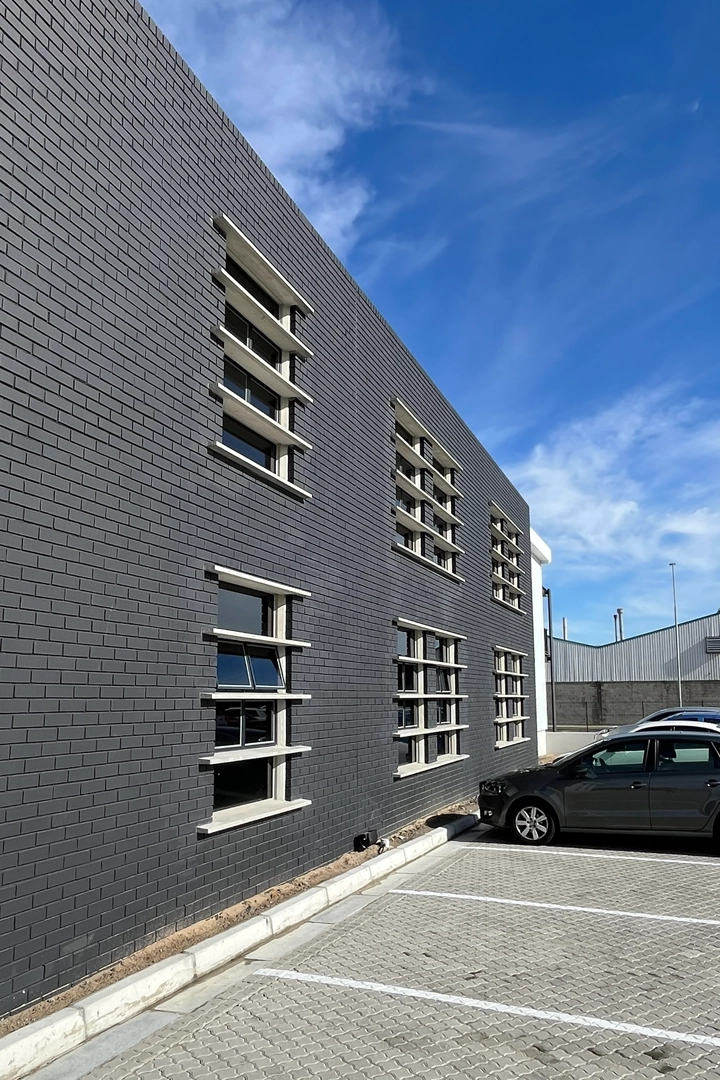

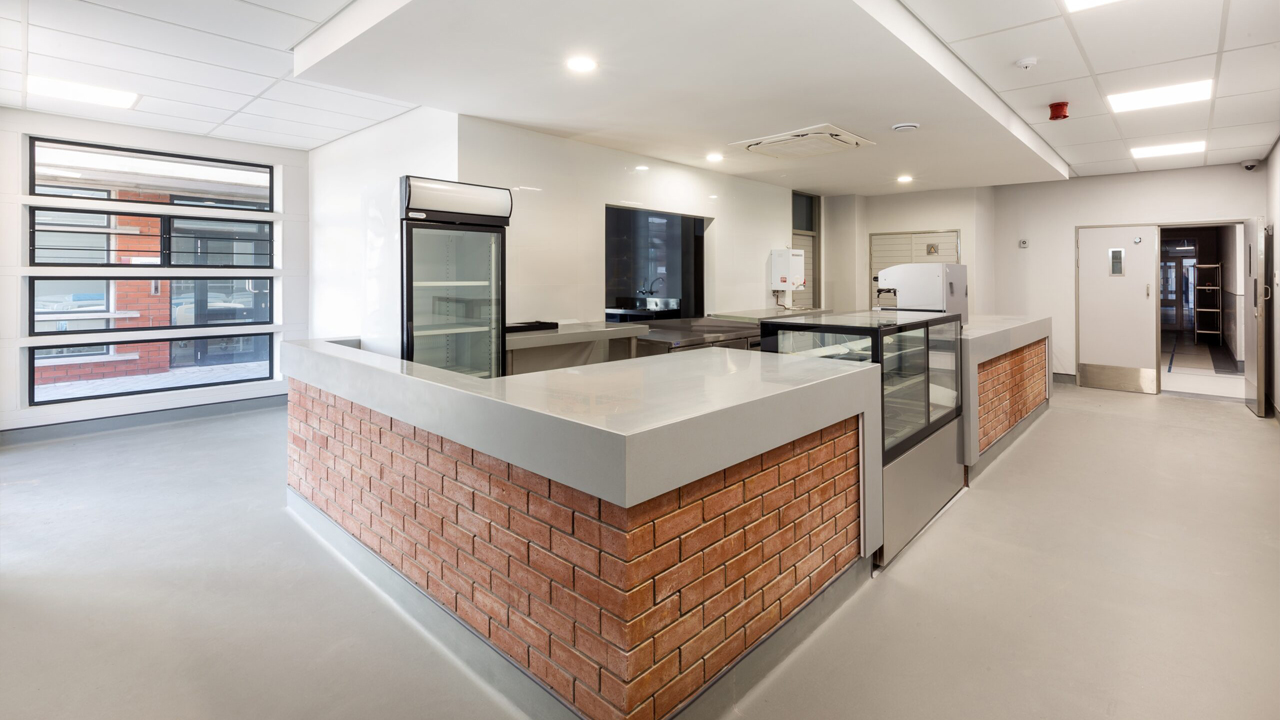

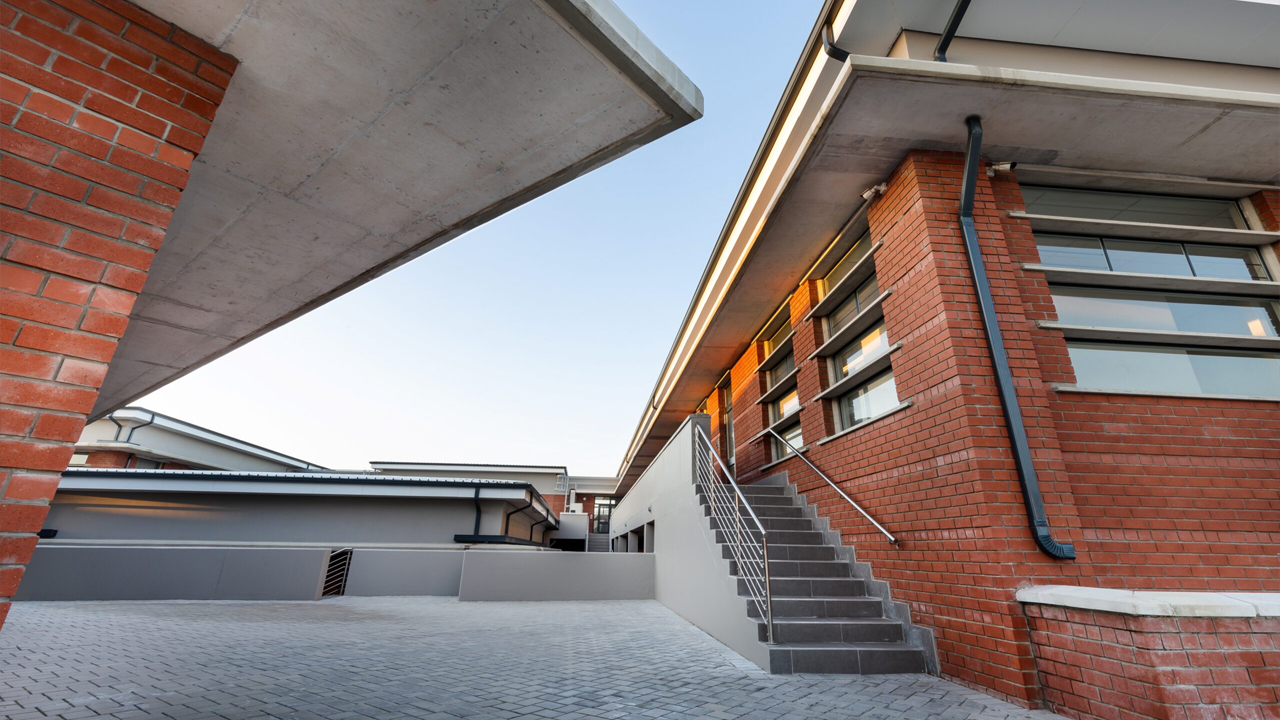

Winslot® is a permanent shading feature which is fully integrated into the structure of a building. The 5 brick course ratio between the P value of 267mm, and the H value of 437mm, produces a shading outcome of 61.1 %.

This results in the fenestration element achieving SANS 10400-XA shading compliance at all South African latitudes, within all the optimal orientation sectors (West, North-West, North, North-East and East) reducing the need for costly high glazing specifications.

Summer Solstice

As indicated in the sectional illustrations, the Winslot thermal insulated precast concrete blade allows for bounced light to enter the building during the hot summer months, without limiting the desirable winter solar gains.

Winter Solstice

As indicated in the sectional illustrations, the Winslot thermal insulated precast concrete blade allows for direct light to enter the building during the cold winter months, while limiting the solar exposure during the hot summer.

Assumed Parameters

Hemisphere: Southern
Window Orientation: North
Latitude: 30° South
Brick Courses: 5.

Window Application Solar Heat Gain Comparative

Conventional Aluminium

SHGC Calculation
= (A1 x S1 x E1)

A1 - is the area for fenestration unit.
(1.372 x 1.340 = 1.838m²)

S1 - is the SHGC of the transparent / translucent element In each fenestration element. (For the purposes of this comparison. the std SHGC of 0.81 will be used for single, Clear glass In standard aluminium frame.)

E1 - is the solar exposure factor for each fenestration element Obtained from the tables in Annex C of SANS 204.

P/H = (262/2)/1941 (NOTE: P x ½ as G>0.5m)
= 0.07

Solar Exposure Factor (North / Zone 1) = 0.68

SHGC
= (A1 x S1 x E1)
= (1.838 x 0.81 x 0.68)
= 1.01

Conventional Aluminium:

SHGC of 1.838m² = 1.01

WINTEC® Winslot®

SHGC Calculation
= (A1 x S1 x E1)

A1 - is the area for fenestration unit.
(0.437 x 1.5) + (0.352 x 1.5) + (0.437 x 1.5) = 1.838m²

S1 - is the SHGC of the transparent / translucent element in each fenestration element. (For the purposes of this comparison, the std SHGC of 0.81 will be used for single, clear glass In std aluminium frame.)

E1 - is the solar exposure factor for each fenestration element Obtained from the tables in Annex C of SANS 204.

P/H Window 1 : 259/437 = 0 59
P/H Window 2 : 259/352 = 0.74
P/H Window 2 : 259/437 = 0.59

Solar Exposure Factor Window 1 = 0.30
Solar Exposure Factor Window 2 = 0.27
Solar Exposure Factor Window 3 = 0.30

SHGC
= (A1 x S1 x E1) + (A2 x S2 x E2) + (A3 x S3 x E3)
= (0.655 x 0.81 x 0.30) + (0.528 x0.81 x.27) + (0.655 x0.81 x 0.30)
0.159 + 0.115 + 0.159
= 0.433

Winslot®:

SHGC of 1.8m² = 0.433
(68% less)
